Specifications:
The connector is made of premium plastic and zinc alloy material, which is durable, wear-resistant, air-proof, without burr.
Pneumatic connector with good sealing performance is very convenient to install and disassemble.
Connector can withstand high pressure without tripping, and has a longer service life.

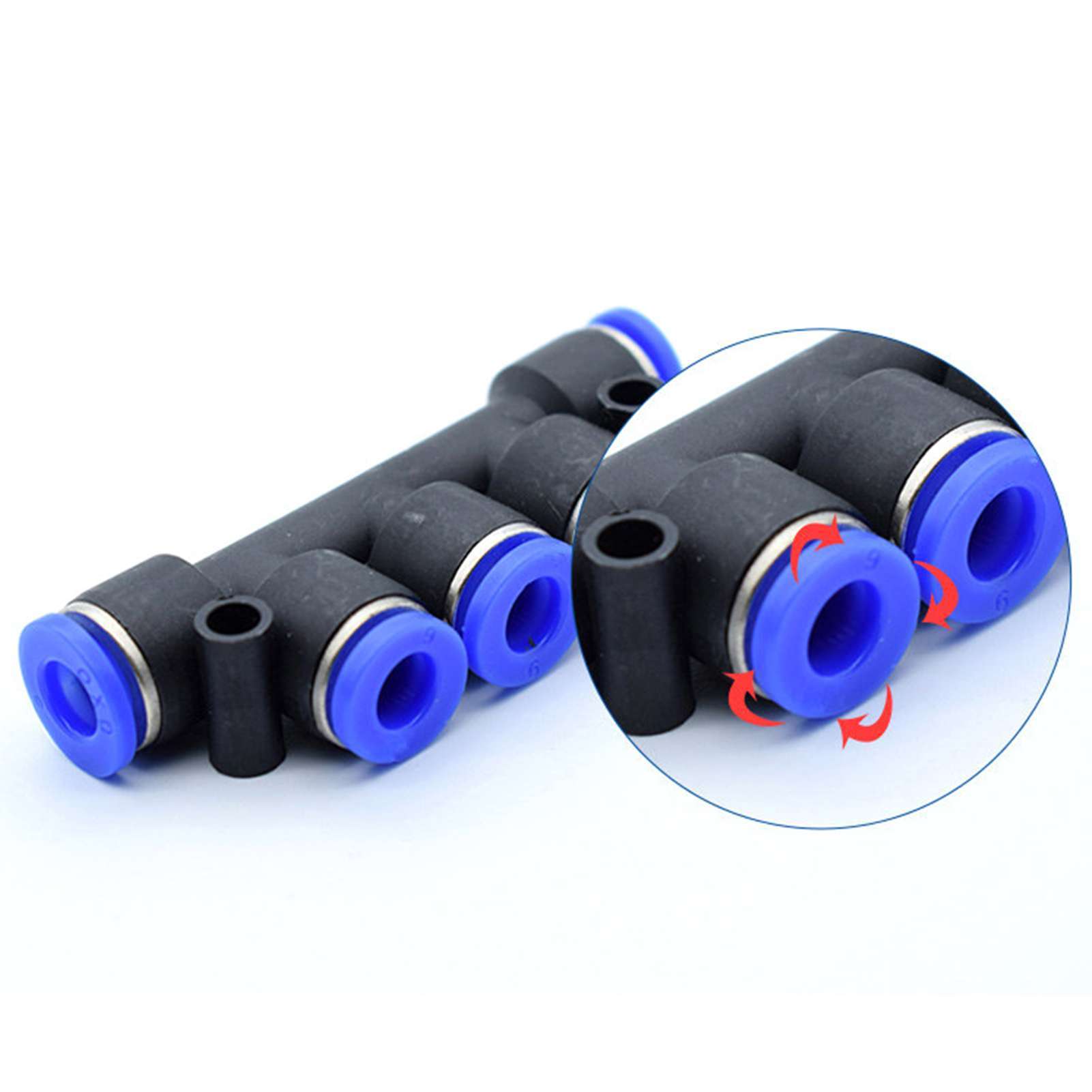

Simple and dexterous connectors can meet any pipe layout needs, and can also be rotated 360 degrees after timely installation.

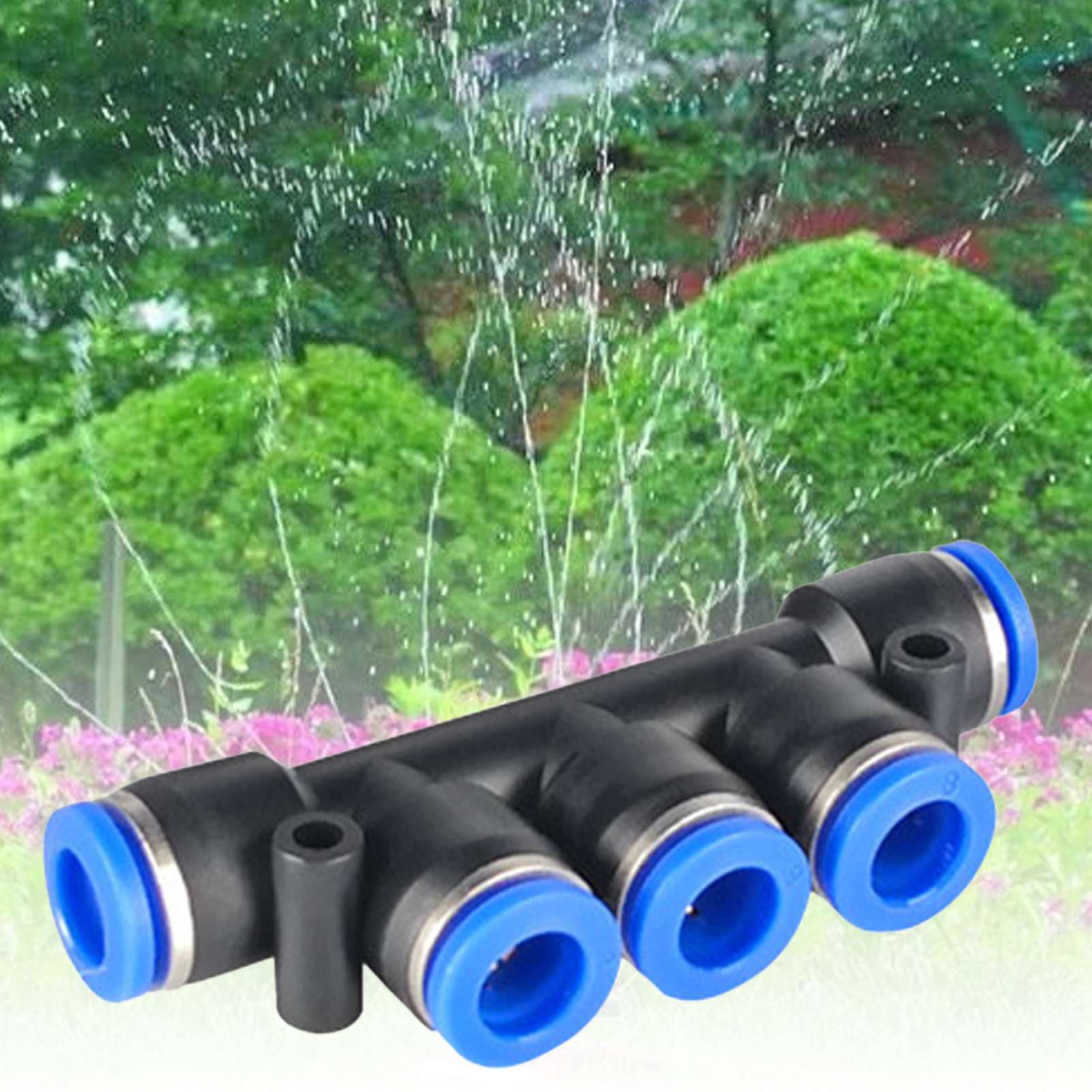

It is widely applied in industries with automatic production equipment like machinery, electronics, automobile, packaging, etc.
Item Name: Quick Connector
Material: Zinc Alloy, Plastic
Type: 5-Way Tube Connector
The Highest Pressure: 1.32MPA (13.5 KGF/CM2)
Using Fluid: Cleaning Compressed Air, Vacuum
Working Temperature Range: 0-60 Celsius Degrees
Using Hose: Hose, Nylon Hose
Features: High Pressure Resistance, Durable, Easy to Use
Size Details:
4mm (PK4): Air Line Diameter: 4mm/0.16″, Connector External Diameter: 11mm/0.43″, Length: 23mm/0.91″, Height: 59mm/2.32″ (Approx.)

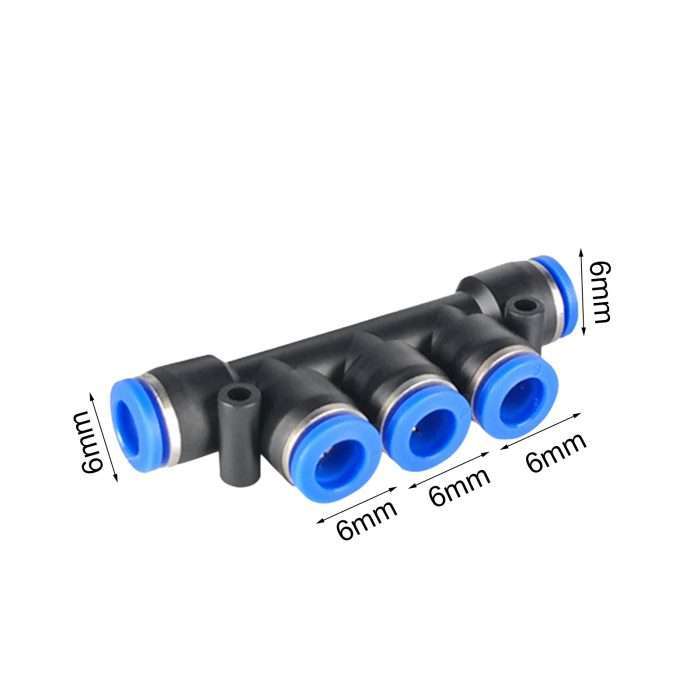

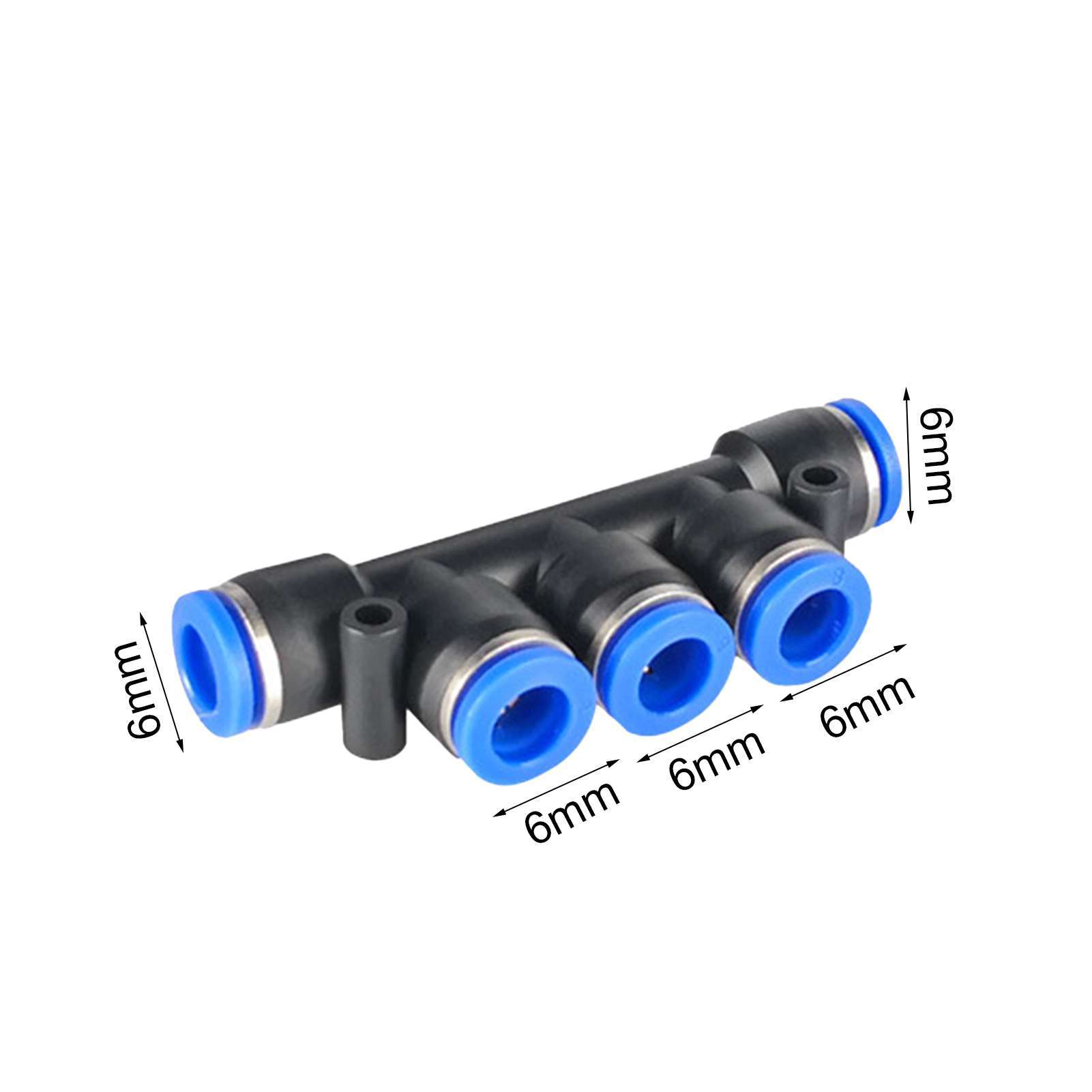

6mm (PK6): Air Line Diameter: 6mm/0.24″, Connector External Diameter: 13mm/0.51″, Length: 66mm/2.6″, Height: 27mm/1.06″ (Approx.)
8mm (PK8): Air Line Diameter: 8mm/0.31″, Connector External Diameter: 15mm/0.59″, Length: 76mm/2.99″, Height: 30mm/1.16″ (Approx.)
10mm (PK10): Air Line Diameter: 10mm/0.39″, Connector External Diameter: 19mm/0.75″, Length: 92mm/3.62″, Height: 36mm1.42″ (Approx.)
12mm (PK12): Air Line Diameter: 12mm/0.47″, Connector External Diameter: 21mm/0.83″, Length: 98mm/3.86″, Height: 39mm/1.54″ (Approx.)
Notes:
Due to the light and screen setting difference, the item’s color may be slightly different from the pictures.
Please allow slight dimension differences due to different manual measurements.
